ANGUI KBX102S Voltage Controller Battery Equalizer Batteries Monitor Balancer

KBX102S battery balancer is an energy transfer balancer that can compensate for batteries in both directions. When the voltage difference between batteries connected in series exceeds 10 millivolts, the battery equalizer begins to operate, and the current will flow from the high-voltage battery to the low-voltage battery. A low battery will eventually balance the battery. It can be connected to a series of batteries for a long time and can automatically maintain battery balance without maintenance.

What is the Battery Balancer?

A battery balancer is a device used in a battery system where multiple batteries are connected in series. Its main purpose is to equalize or balance the voltage or state of charge (SOC) across each individual battery within the series to ensure they all discharge and recharge evenly. This is crucial because if one battery discharges faster than the others, it could potentially be damaged, or it could limit the capacity of the entire system. Balancing can be either passive, where excess energy in high-voltage cells is dissipated as heat, or active, where that energy is transferred to lower voltage cells.

Why does the battery pack require the installation of a battery balancer？

The battery balancer offers advantages such as improved battery performance, increased efficiency, enhanced safety, extended lifespan, compatibility with different cell characteristics, and flexibility in cell replacement. These benefits make it a valuable component in systems that rely on battery packs, especially those that prioritize optimal performance and longevity.

How to choose the battery balancer?

When choosing a battery balancer, it's important to consider Battery chemistry,Balancing method,Balancing efficiency,Balancing voltage range,Maximum balancing current,System voltage and capacity to ensure it meets the requirements of your specific battery pack configuration and application. you could click here to Angui battery balancer Selection Tool, choose a suitable battery balancer.

Angui KBX102S Battery Balanacer feature:

① Equalization method: Inductor
② Work Voltage：7-18V
③ Equalization Current：0-10A
④ Connect type：Series or parallel
⑤ Display：LCD Display
⑥ Terminal：100cm+M8 ring

KBX102S battery balancer is suitable for lead-acid batteries, Li-ion Battery batteries, Lithium iron phosphate Batteries,nickel-cadmium or nickel-hydrogen batteries. It can work when the voltage is higher than 7V, that is, the battery balancer can be used for batteries with a single battery in the range of 7V-18V, and any number of batteries can be connected in parallel or series.

KBX102S battery balancer can be installed in multiple parallel connections, and can be used with 48V 60V 72V 96V 110V 220V 240V batteries. Each battery balancer corresponds to 2 batteries.Rail-type buckle installation, can easily install the module in the distribution box.

Two pairs of battery connection terminal wires and one pair of parallel wiring are included in the product package, which is convenient for customers to install quickly.

  KBX102S Battery Balanacer LCD Display

① The two batteries in the battery pack must be of the same type. The capacity or the new old of the battery is different, which will affect the effect of the battery equalizer.

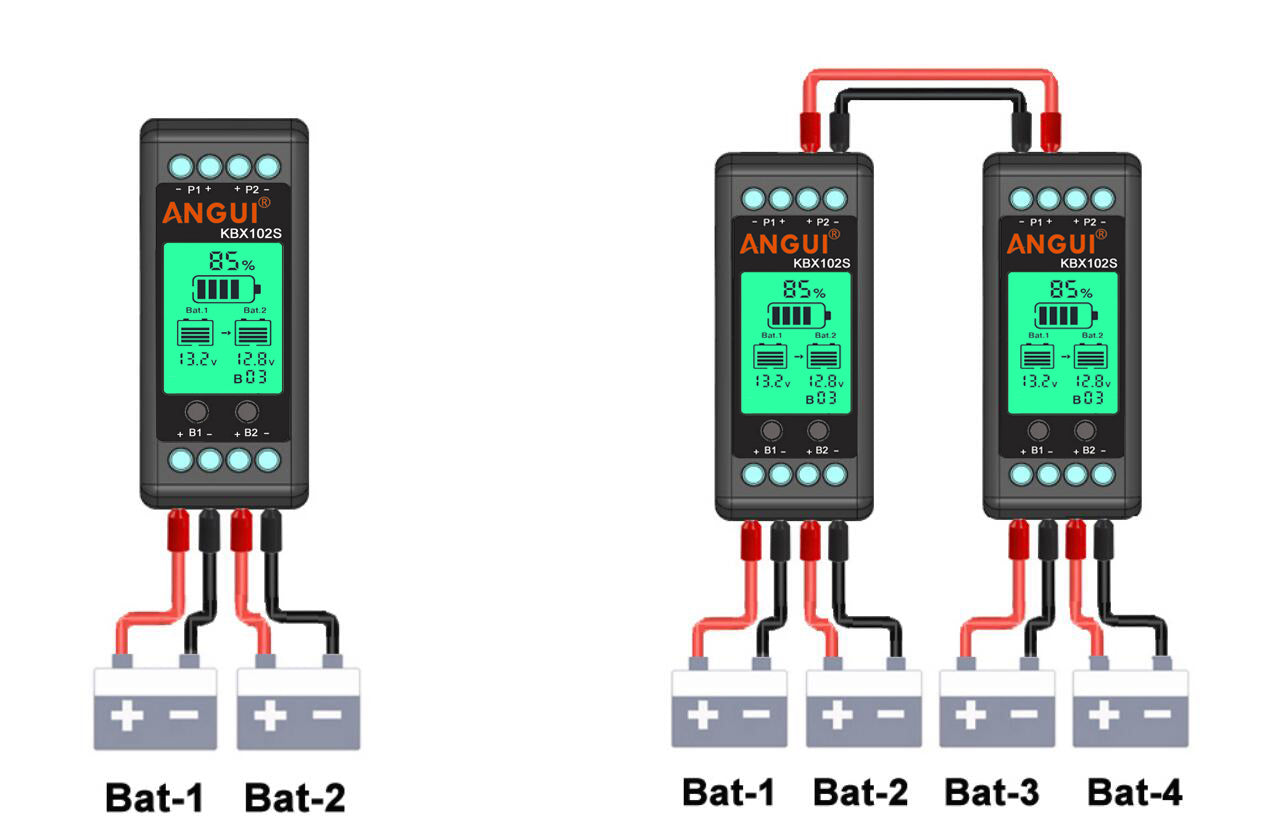

② Each equalizer corresponds to two batteries.

③ Multiple battery equalizers can be used in parallel to solve the voltage balance of multiple batteries in the battery pack. In theory, countless batteries can be connected in parallel.

Battery Type Table:

*Default mode B03
