A battery balancer is a device used in a battery system where multiple batteries are connected in series. Its main purpose is to equalize or balance the voltage or state of charge (SOC) across each individual battery within the series to ensure they all discharge and recharge evenly. This is crucial because if one battery discharges faster than the others, it could potentially be damaged, or it could limit the capacity of the entire system. Balancing can be either passive, where excess energy in high-voltage cells is dissipated as heat, or active, where that energy is transferred to lower voltage cells.
The battery balancer offers advantages such as improved battery performance, increased efficiency, enhanced safety, extended lifespan, compatibility with different cell characteristics, and flexibility in cell replacement. These benefits make it a valuable component in systems that rely on battery packs, especially those that prioritize optimal performance and longevity.
When choosing a battery balancer, it's important to consider Battery chemistry,Balancing method,Balancing efficiency,Balancing voltage range,Maximum balancing current,System voltage and capacity to ensure it meets the requirements of your specific battery pack configuration and application. you could click here to Angui battery balancer Selection Tool, choose a suitable battery balancer.

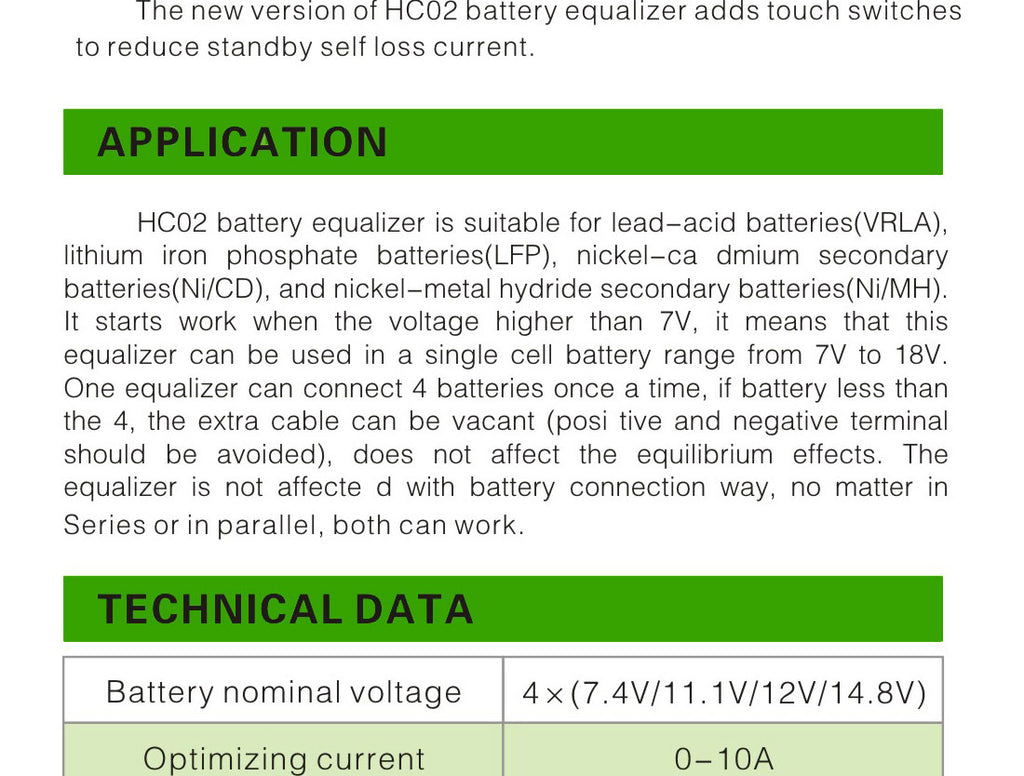

HC02 battery balancer is suitable for lead-acid batteries(VRLA), lithium iron phosphate batteries(LFP), nickel-ca dmium secondary batteries(Ni/CD), and nickel-metal hydride secondary batteries(Ni/MH). It starts work when the voltage higher than 7V, it means that battery balancer can be used in a single cell battery range from 7V to 18V. 1pc battery balancer can connect 4 batteries once a time, if battery less than the 4, the extra cable can be vacant (posi tive and negative terminal should be avoided), does not affect the equilibrium effects. The battery balancer is not affecte d with battery connection way, no matter in series or in parallel, both can work.
Technical Data:
Battery nominal voltage | 4* (7.4V/11.1V/12V/9V/14.8V) |
Optimizing current | 0-10A |
Quiescent current | 50mA(12V) |
Dimensions | 62*124*27 mm |
Protection | Reverse polarity protection |
Under voltage lock out | 1.8V |
Installation:
Connect it as the following order:
1.Red cable connect positive/+ pole. Black cable connect negative/- pole

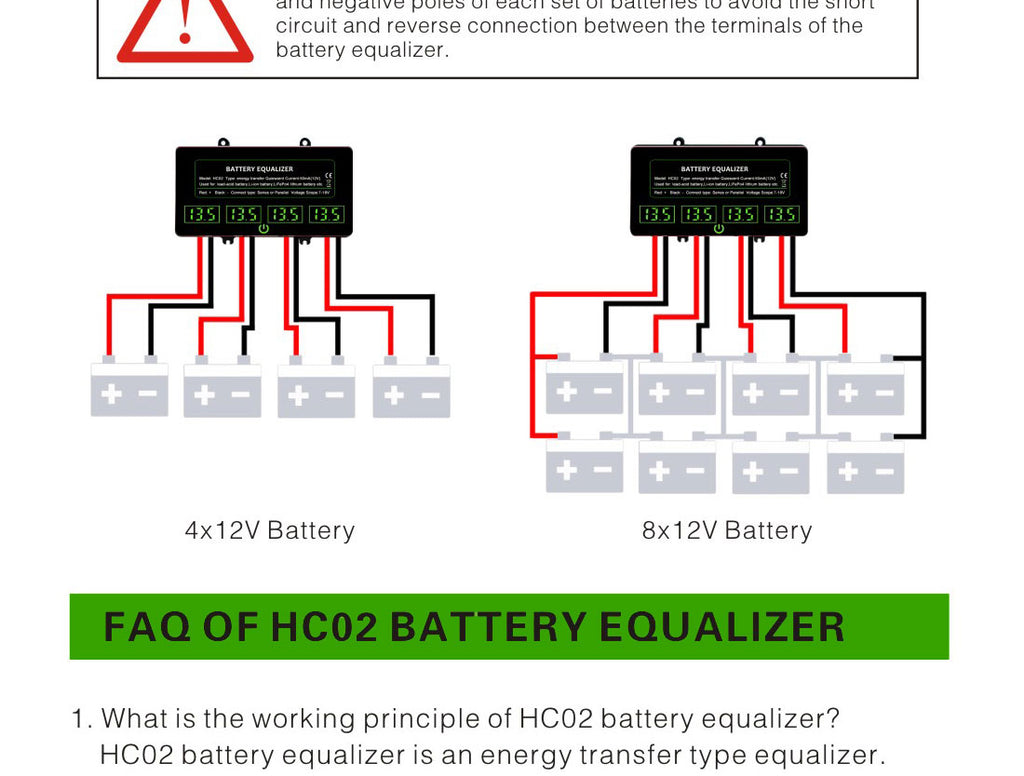

2.Connect the batteries as the pictures
You can connect all + pole firstly,and then – pole to avoid short circuits.
Note:
1.If there are extra cables, please leave the tubes of the terminals on it to avoid short circuits.
2.Please avoid any of the 8 terminals touching each other.
During the working process of a series connected battery, differences in the chemical composition and temperature of the battery cells can lead to differences in the charging and discharging of the two batteries Even when the battery is idle, due to the different degree of self-discharge, it will lead to imbalance between batteries connected in series During the charging process, due to differences, one battery may be overcharged or discharged, while the other may not be fully charged or discharged. As the charging and discharging process repeats, this difference will gradually strengthen, ultimately leading to premature battery failure. The battery equalizer is mainly used in series connected battery packs to maintain the charging and discharging balance between each battery.
